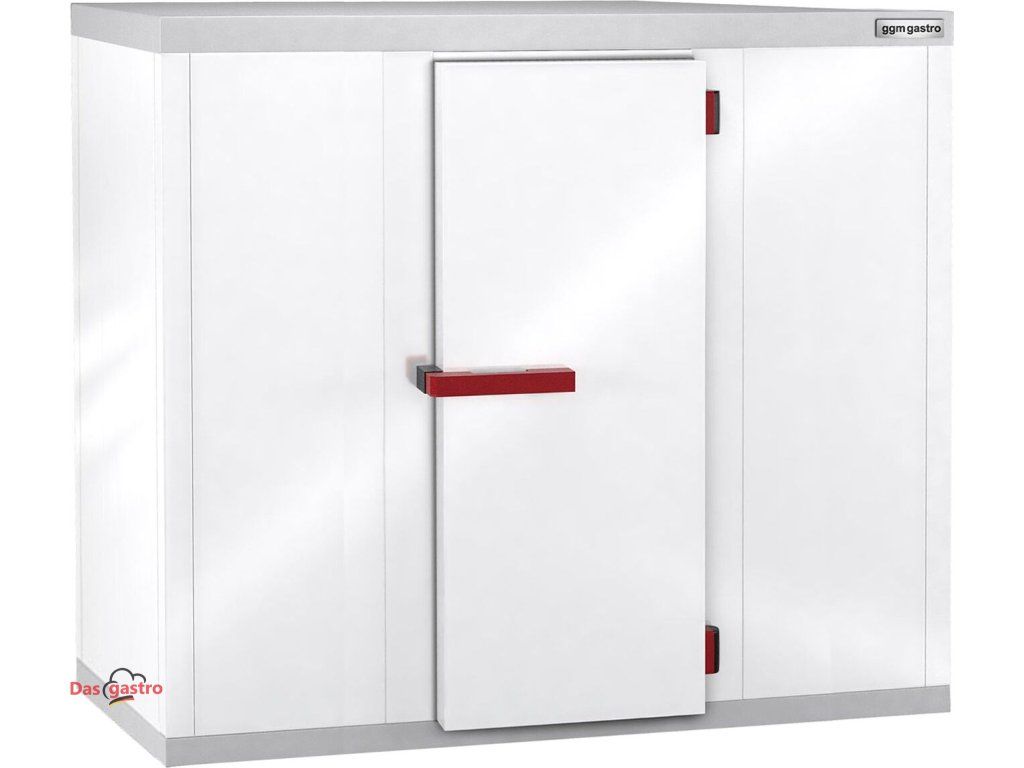

Freezer cell 1420x1950mm - 4,18 m³

Code: D9774748
Brand: G.Gastro
€4 510,40 €3 348,50 €4 051,70 incl. VAT
Momentálně nedostupné
External insulation: 100 mm

Detailed information

Product detailed description

Design

  • Top-class cold storage cell
  • Prevents extreme low pressure within the cell
  • Optimal for stock-keeping
  • Particularly hygienic due to easy cleaning
  • Long lifetime (usually 15 year and more).
  • Easy subsequent extension possible

Quality

  • Superior product made in Europe
  • High precision and stability
  • Highly robust and durable
  • Compact, robust design

Dimensions

  • Outer dimensions W x D x H: 1.425 mm x 1.950 mm x 2.190 mm
  • Room volume: 4,18 m³

Wall construction

  • Easy to fit
  • Lots of space despite compact design
  • Interior with integrated emergency opening device
  • Foamed turnbuckles for non-positive connection of elements
  • Corrosion-resistant turnbuckles create stability & joint sealing
  • Element connection by self-centring sealing system

Cell floor

  • Subfloor ventilation
  • Pressure compensation valve
  • Fibre-glass reinforced plastic
  • On water resistant glued multiplex plate
  • Floor with embossed surface for maximum adhesion
  • Floor with patented anti-slip coating (slip resistance class R11)
  • High level of floor durability thanks to multi-bonded pressure distribution plates

Insulation

  • Particularly energy-efficient due to the insulation at the top
  • Wall thickness 100 mm PUR (HFC- and CFC- free)

Surface

  • Galvanised steel sheet with zinc-aluminium coating
  • Color: White, RAL9.002
  • All elements also equipped with protective foil
  • Protective foil can be removed after assembly

Door features

  • Double door
  • Jumbo seal
  • Stainless steel door sill
  • Lockable
  • High impact-resistant special plastic
  • Interior with integrated emergency opening device
  • Door sealing strips guarantee top-quality seals
  • Door and door frame profiles made of special plastic
  • Prevents icing of the door and door frame
  • Direction the door opens can be freely chosen. Please advise on preference when ordering!
  • Door position, as standard, central on the longest side. Please indicate when placing your order!

Please note:

  • Winter equipment for outdoor use is available for an additional charge.
  • Special bodies possible - please enquire when ordering - special bodies are may not be returned!
  • Please indicate special requests such as door stops or winter equipment in the comments field when ordering. Subsequent changes are not possible.
  • Delivery without cooling unit
  • Interior lighting not included in deep-freeze cell delivery – interior lighting is included in purchase of cooling unit

Standards

  • Manufactured in accordance with relevant hygiene and safety standards
  • CE marking as proof of conformity with EU regulatory standards
  • Corresponding to the EU guidelines (Halon regulations)
  • Materials comply with European food safety standards

OPTIONAL ACCESSORIES:

  • Shelves
  • Interior lighting
  • Refrigeration unit
  • Cold protection segment

Additional parameters

Category: Freezer boxes MINUS - 1.42 m wide
Weight: 380 kg
Hloubka: 1950 mm
Hmotnost: 380.000 kg
Hmotnost balení: 380 kg
Šířka: 1425 mm
Výška: 2190 mm
