Small glasswasher 2.77 kW - with drain pump
Code: 839Related products
Body made of high-quality stainless steel
besonders geeignet für Kaffeemaschinen, Kombidämpfer & kleine Unterbauspülmaschinen
For all water hardnesses
For all water hardnesses
Underframe for dishwasher and washing baskets
besonders geeignet für Kaffeemaschinen, Kombidämpfer & kleine Unterbauspülmaschinen
Product detailed description
Design
- Especially small device
- Dishwasher with drain pump
- Substructure device
- Electric rinse aid dispenser
- Door opening mechanism with integrated safety system
- Rinse arms at top and bottom
- One washing arm for effective cleaning
- 2 Clear rinse arms
Quality
- Body made of premium stainless steel
- Exceptionally robust
Rinsing
- Purge duration: 120 s
- Baskets / hour: 30
Technology
- Electromechanical controls, no servicing required
- Rotating, non-clogging wash and rinse jets
- Cleaner tank with double filter system
- hydraulic rinse aid dosing device
- Lye pump pumps dirty water over a height difference into the sewage connection.
Benefits
- Exceptionally quiet
- Particularly energy-efficient due to the insulation at the top
- Superior rinsing
- Outstanding results
Connection
- Power: 2,77 kW
- Electrical connection: 1N/PE / 230V / 50 Hz
Dimensions
- Outer dimensions W x D x H: 423 mm x 466 mm x 589 mm

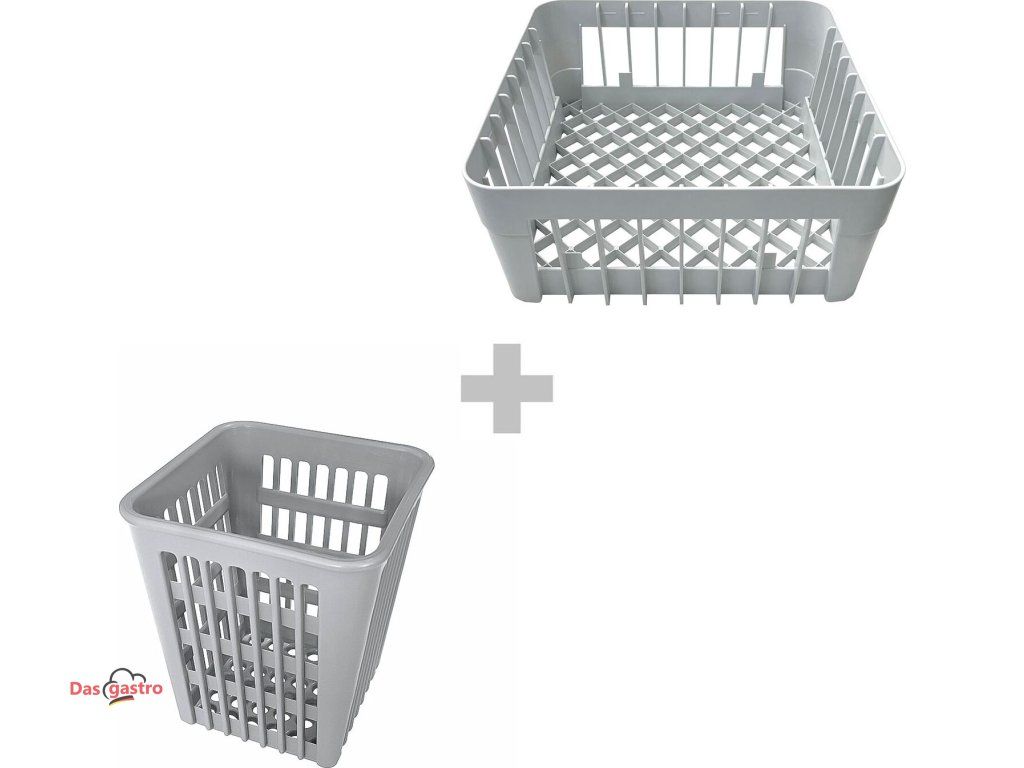

Includes
- One glass basket
- 1 cutlery basket
- 1 Schuko plug
Standards
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
Please note:
- Information on the supply voltage can be found in the user manual
- For optimal rinsing, we recommend that you regularly descale the unit and its components!
- Please note that the appliance can be operated with either a hot or cold water connection. The rinse cycle values can only be guaranteed with a hot water connection.
- Only suitable for chlorine free detergents.
- If you have used a descaler upstream, note that after approx. 1500 - 2000 Liter water flow rate the cartridge must be regenerated. The actual maximum flow rate depends on the water hardness.
- Detailed instructions can be found under the tabs 'Download' and 'Video'.
Additional parameters
Category: | Bases of glass washers |
---|---|
Weight: | 26 kg |
Hloubka: | 466 mm |
Hmotnost: | 26.000 kg |
Hmotnost balení: | 35 kg |
Šířka: | 423 mm |
Výkon: | 2,77 kW |
Výška: | 589 mm |
Immersion depth 295mm
DPO20-052
old no. 902058
Flushing arm clamping nut
ø 4x6mm
