Refrigeration cell - 1030x1030mm - 1,49m³

Design

• Top-class cold storage cell

• Temperatures up to 65 °C possible

• Optimal for stock-keeping

• Long lifetime (usually 15 year and more).

• Particularly hygienic due to easy cleaning

• Easy subsequent extension possible

Quality

• Superior product made in Europe

• Top-quality insulation values through the use of polyurethane

• High precision and stability

• Highly robust and durable

• Compact, robust design

Dimensions

• Outer dimensions W x D x H: 1.035 mm x 1.035 mm x 2.110 mm

Wall construction

• Foamed turnbuckles for non-positive connection of elements

• Corrosion-resistant turnbuckles create stability & joint sealing

• Element connection by self-centring sealing system

• Easy to fit

Cell floor

• Floor with patented anti-slip coating (slip resistance class R11)

• Floor with embossed surface for maximum adhesion

• High level of floor durability thanks to multi-bonded pressure distribution plates

Insulation

• Wall thickness 80 mm PUR (HFC- and CFC- free)

• Corresponding to the EU guidelines (Halon regulations)

• Particularly energy-efficient due to the insulation at the top

Surface

• Galvanized steel sheet, 0,63 mm Plastic coating

• Color: White, RAL9.002

• All elements also equipped with protective foil

• Protective foil can be removed after assembly

Door features

• Revolving door with elevating hinges

• Jumbo seal

• Lockable

• Interior with integrated emergency opening device

• Direction the door opens can be freely chosen. Please advise on preference when ordering!

• Door position, as standard, central on the longest side. Please indicate when placing your order!

• Door frame profiles made from impact-resistant special plastic

• Stainless steel door sill

• Door sealing strips guarantee top-quality seals

Please note:

• Special bodies possible - please enquire when ordering - special bodies are may not be returned!

• Winter equipment for outdoor use is available for an additional charge.

• Please indicate special requests such as door stops or winter equipment in the comments field when ordering. Subsequent changes are not possible.

• Delivery without cooling unit

Standards

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

• Materials comply with European food safety standards

OPTIONAL ACCESSORIES:

• Shelves

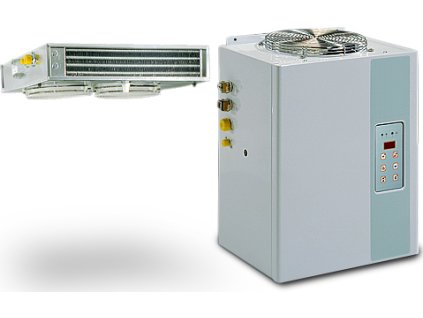

• Refrigeration unit

• Cold protection segment
